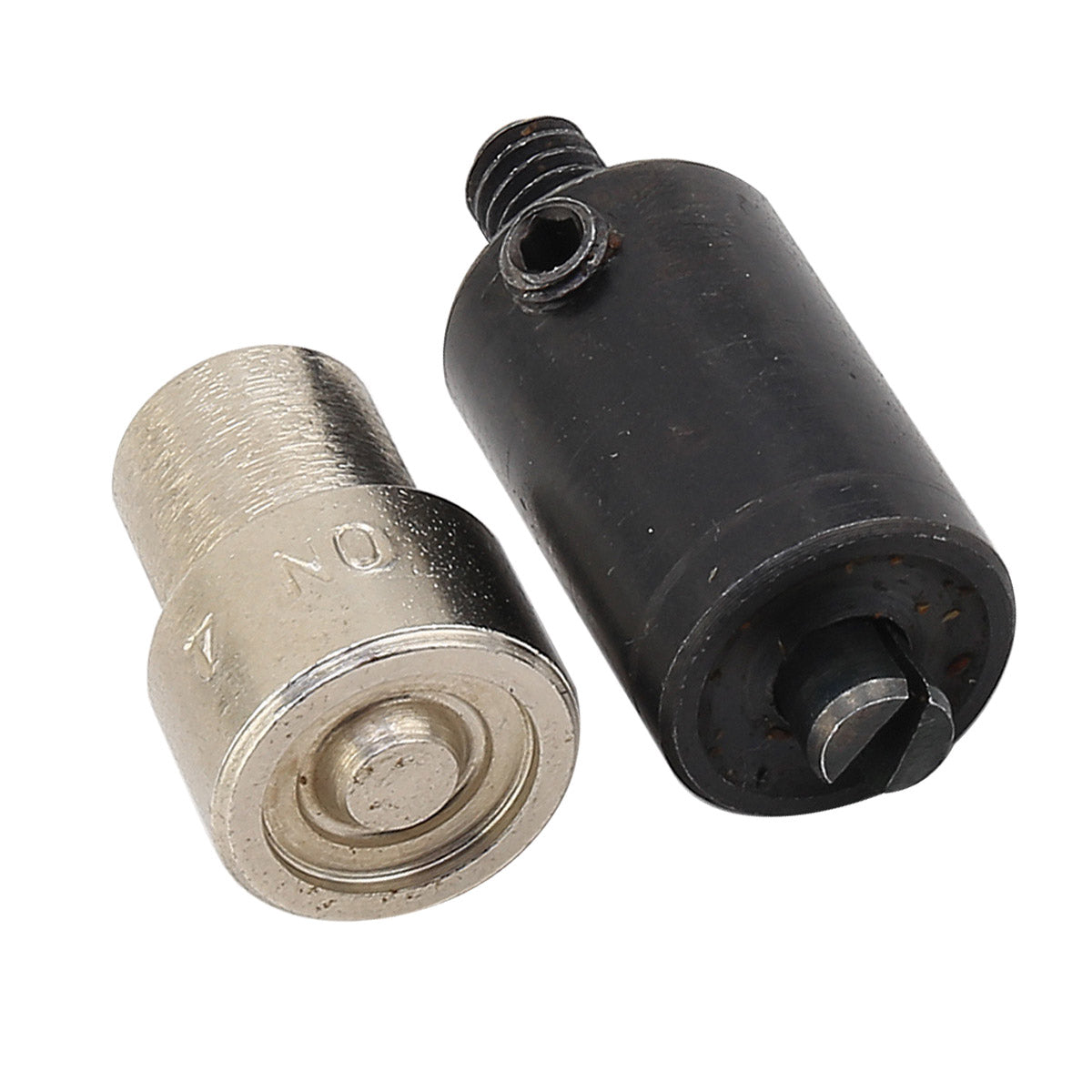

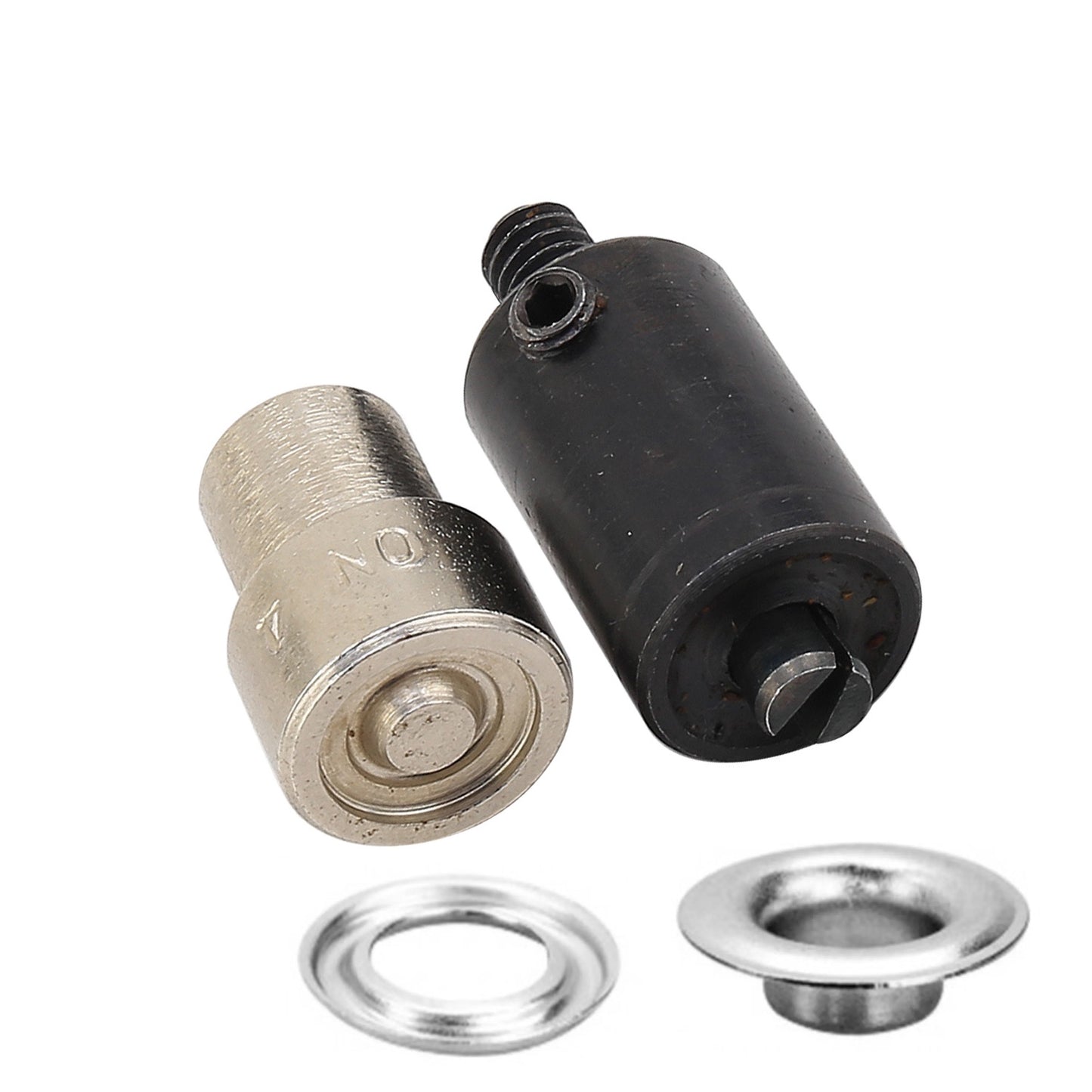

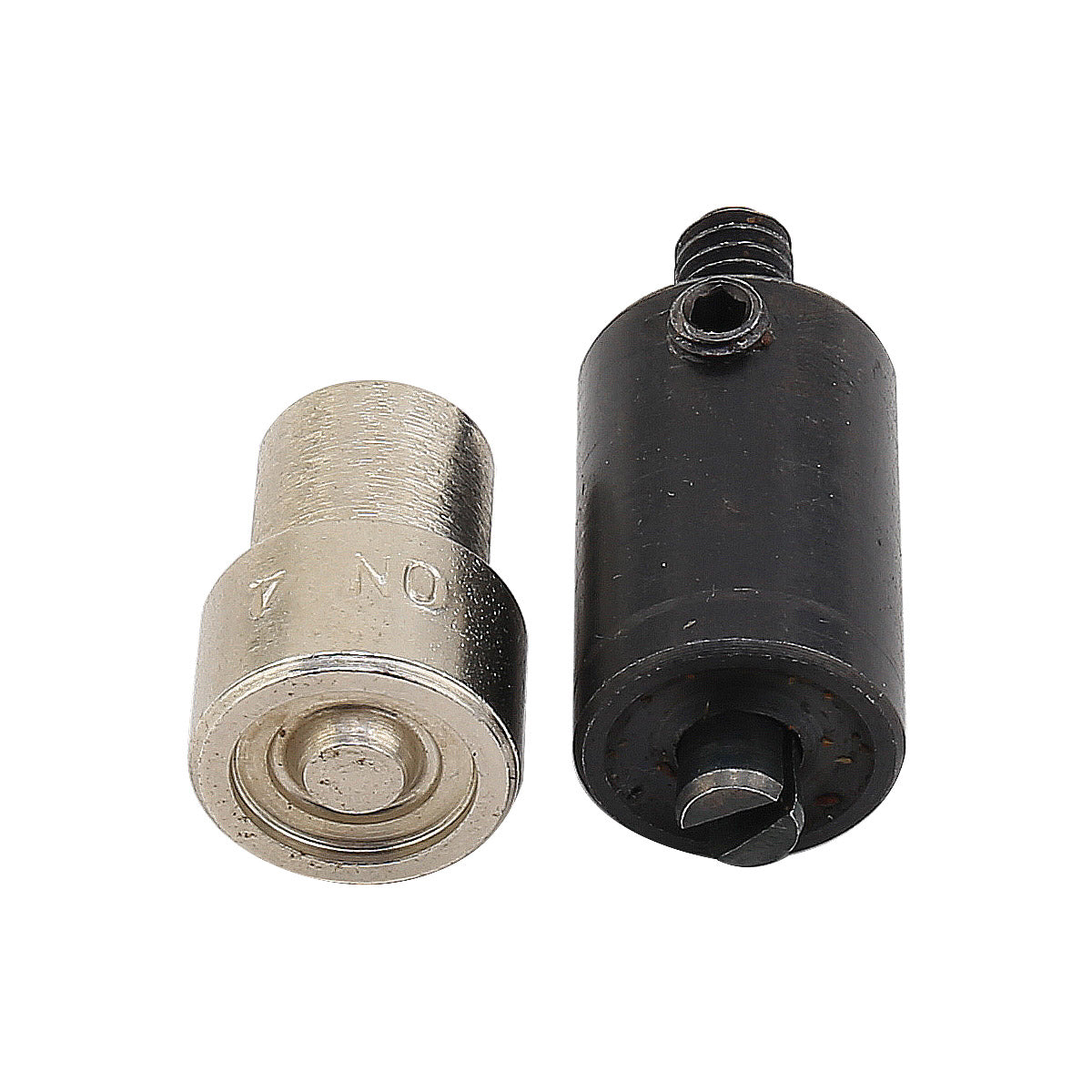

Self-Piercing Eyelets Grommets Dies for Hand Press Machine

You can use these dies for setting eyelets grommets self-piercing so you don't need cutting holes in thin fabrics. Eyelets can pierce fabric by itself.

This dies for hand press machine and not work without machine.
This listing is only for dies, eyelets grommets sell separately.

The sizes are inner diameter for eyelets grommets.
Please select your preferred size from the drop down menus before adding to your cart.

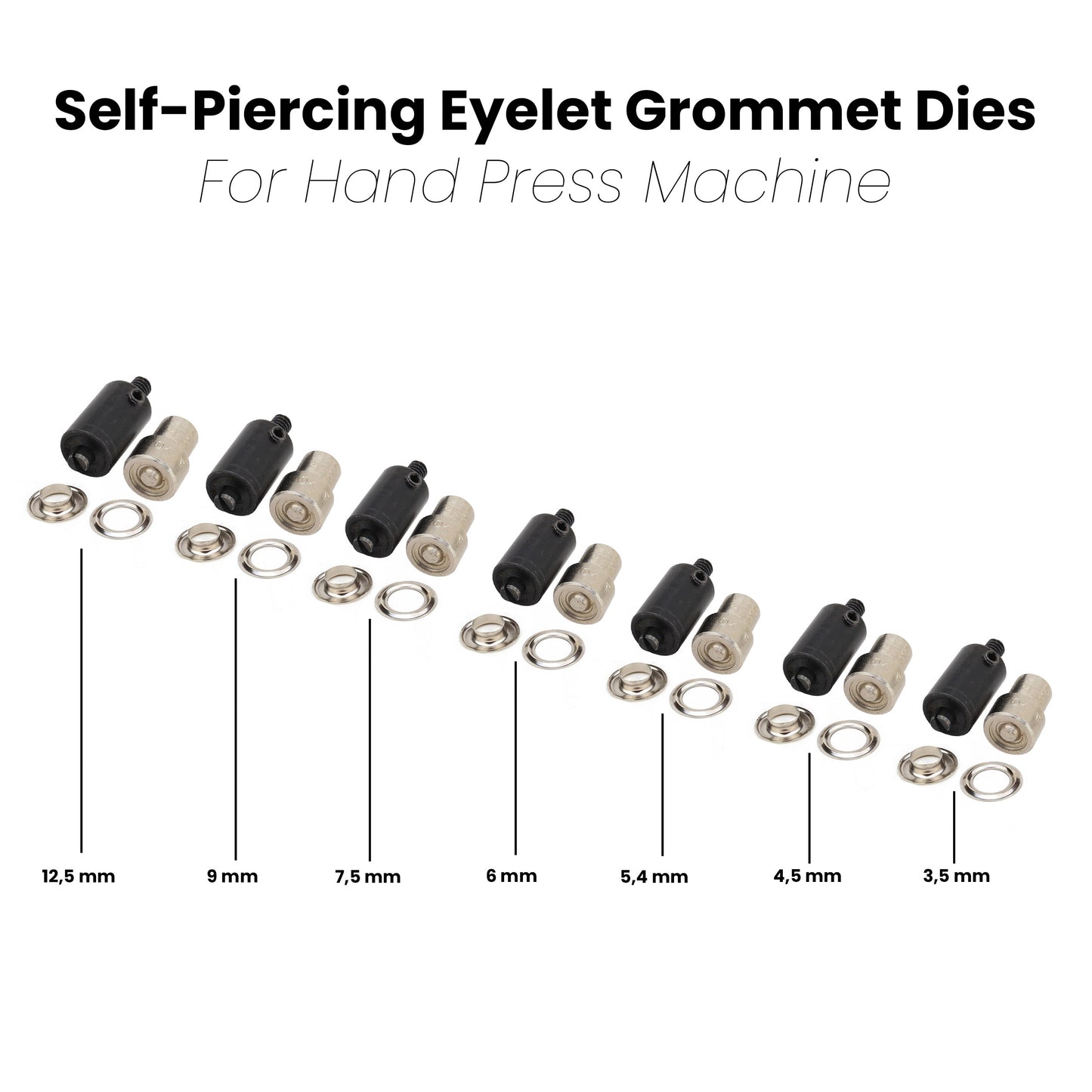

3.5 mm die for #1,7 Eyelet: Inner diameter=3,7 mm, outer diameter=7 mm
4.5 mm die for #2 Eyelet: Inner diameter=4,5 mm, outer diameter=8,5 mm
5.4 mm die for #3 Eyelet: Inner diameter=5 mm, outer diameter=10 mm
6 mm die for #4 Eyelet: Inner diameter=6,2 mm, outer diameter=11,8 mm
7.5 mm die for #5 Eyelet: Inner diameter=8,1 mm, outer diameter=15 mm
9 mm die for #24 Eyelet: Inner diameter=9 mm, outer diameter=18,8 mm
12.5 mm die for #28 Eyelet: Inner diameter=12,8 mm, outer diameter=25 mm

Our all die's thread size is 6.3mm (1/4" 20 UNC) and fits the our DZNTOOLS hand press machine. If you have a different hand press, please check your hand press measurements, and make sure that this matches your hand press machine requirements.

If you use our hand press machine you don't need any thread converters. If you have a different hand press, please check your hand press measurements and ensure that this matches your hand press machine requirements. We now offer M6 and M8 thread converter adapters for use with our dies and molds. These adapters will allow you to use our dies and molds with machines that have M6 or M8 threads. Please contact us for more information or to place an order.
